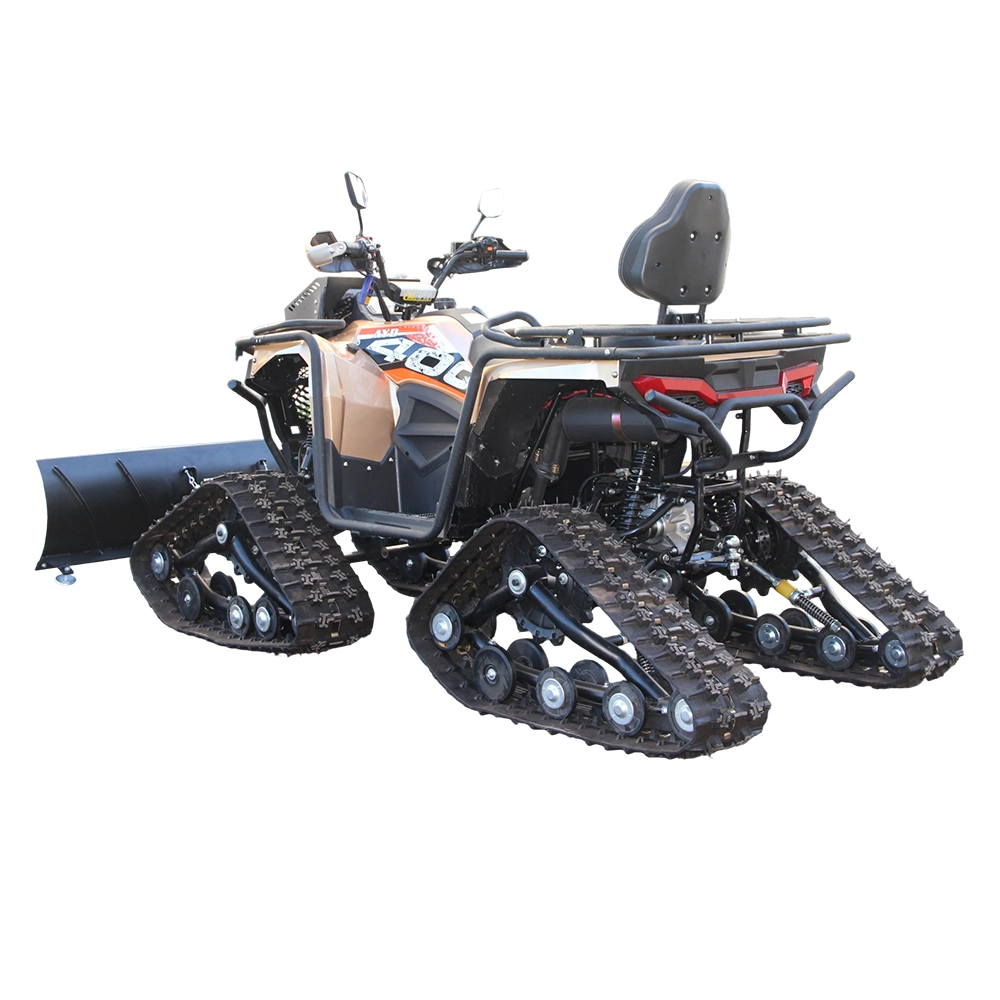

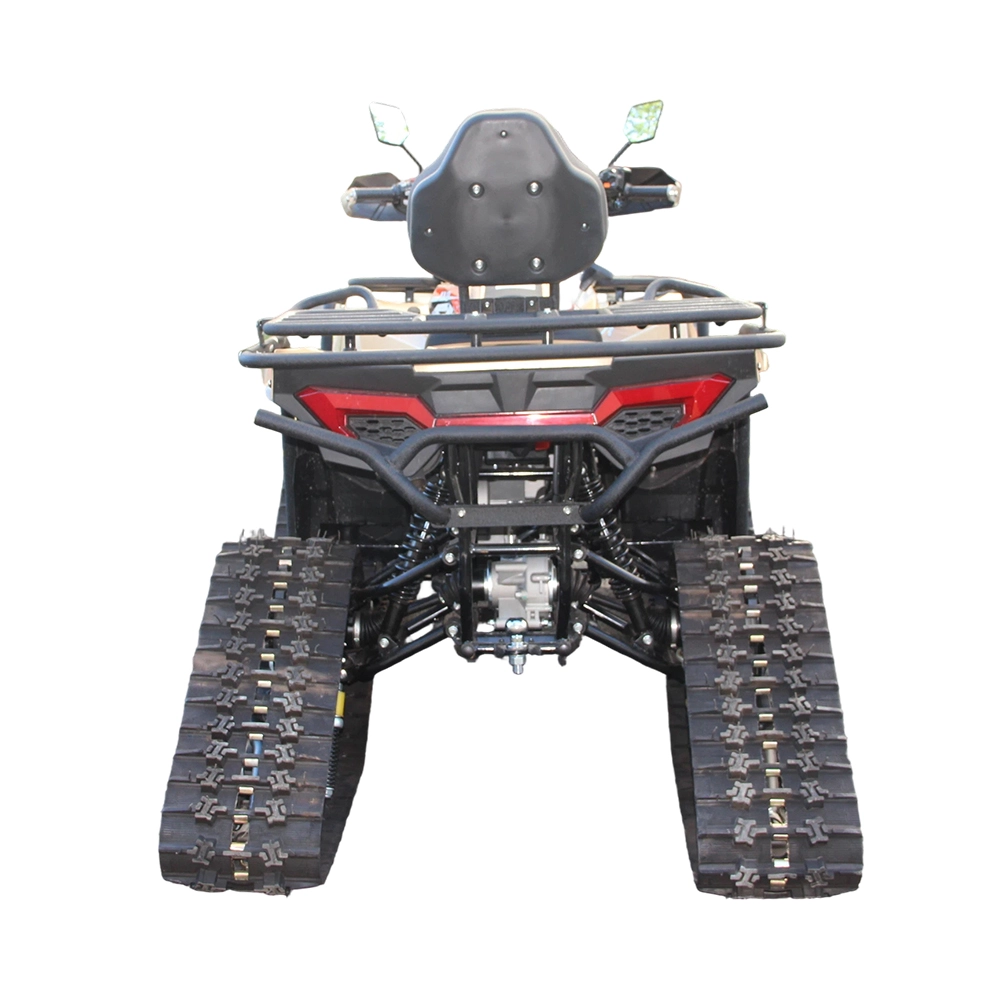

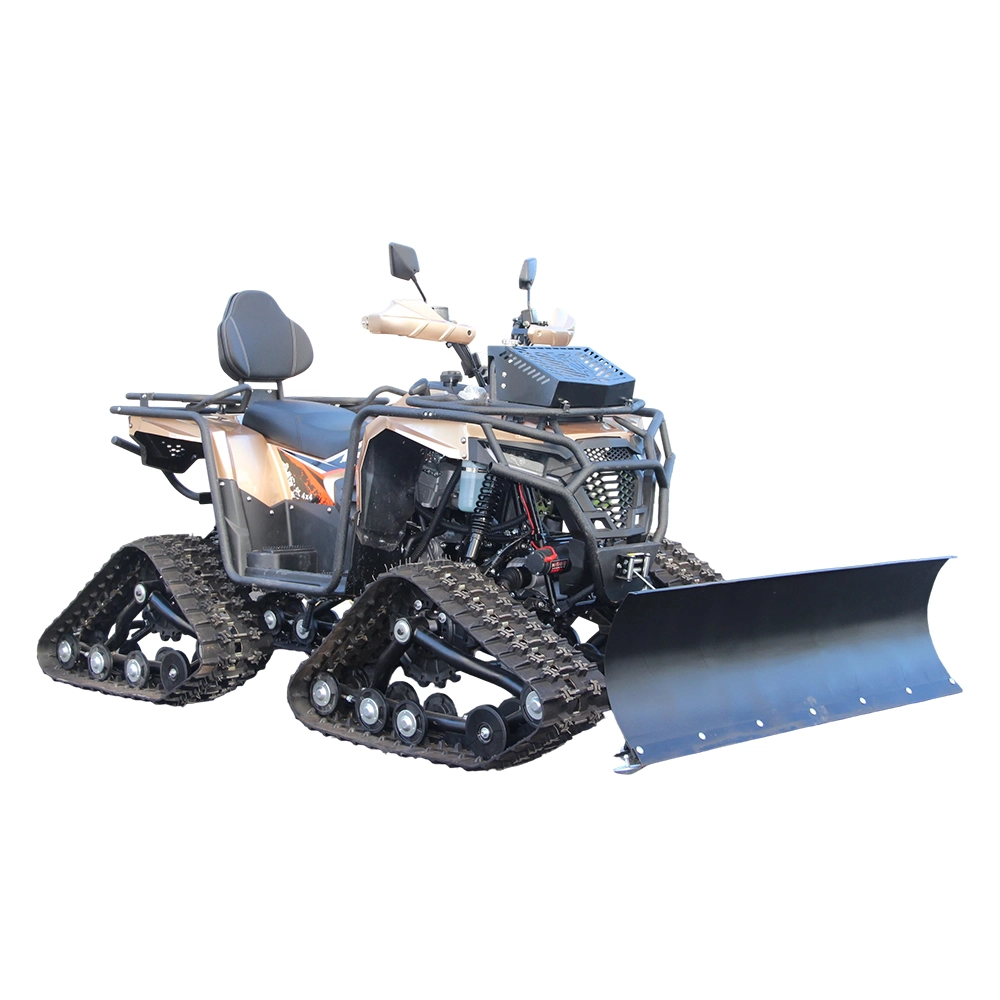

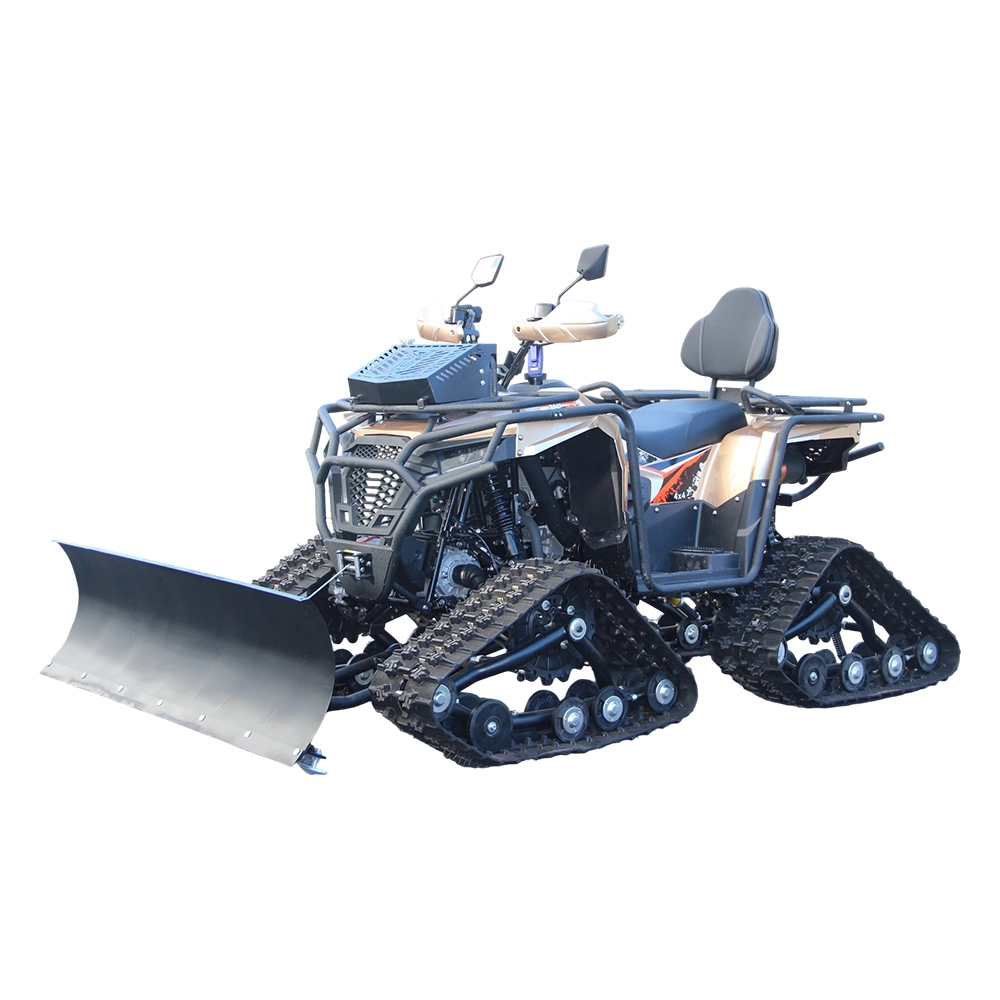

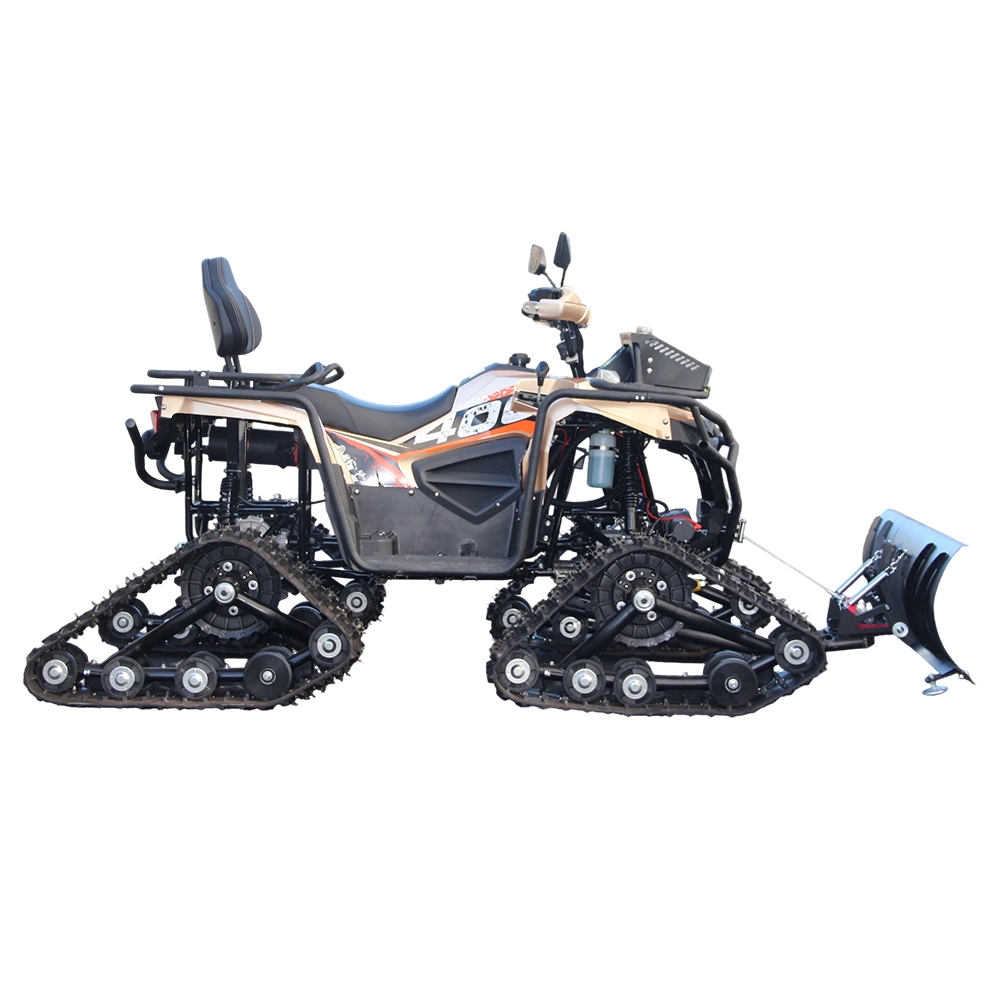

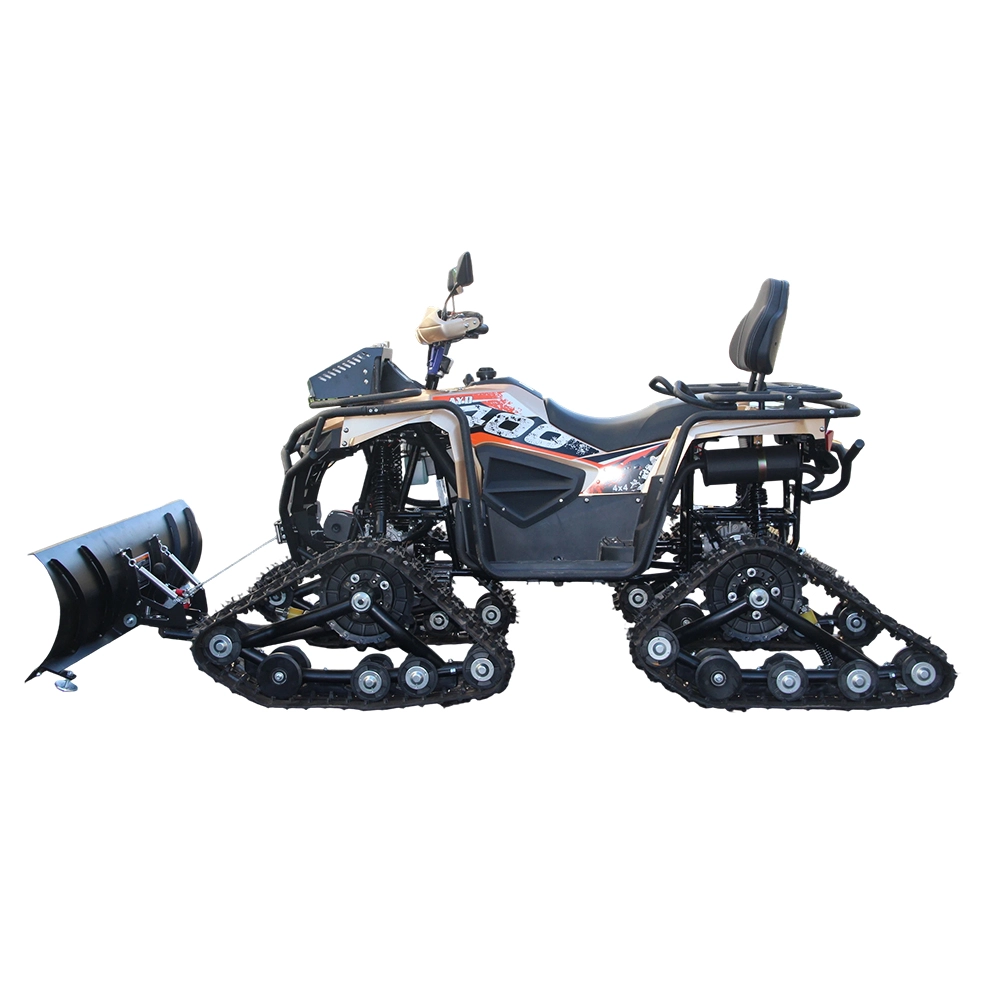

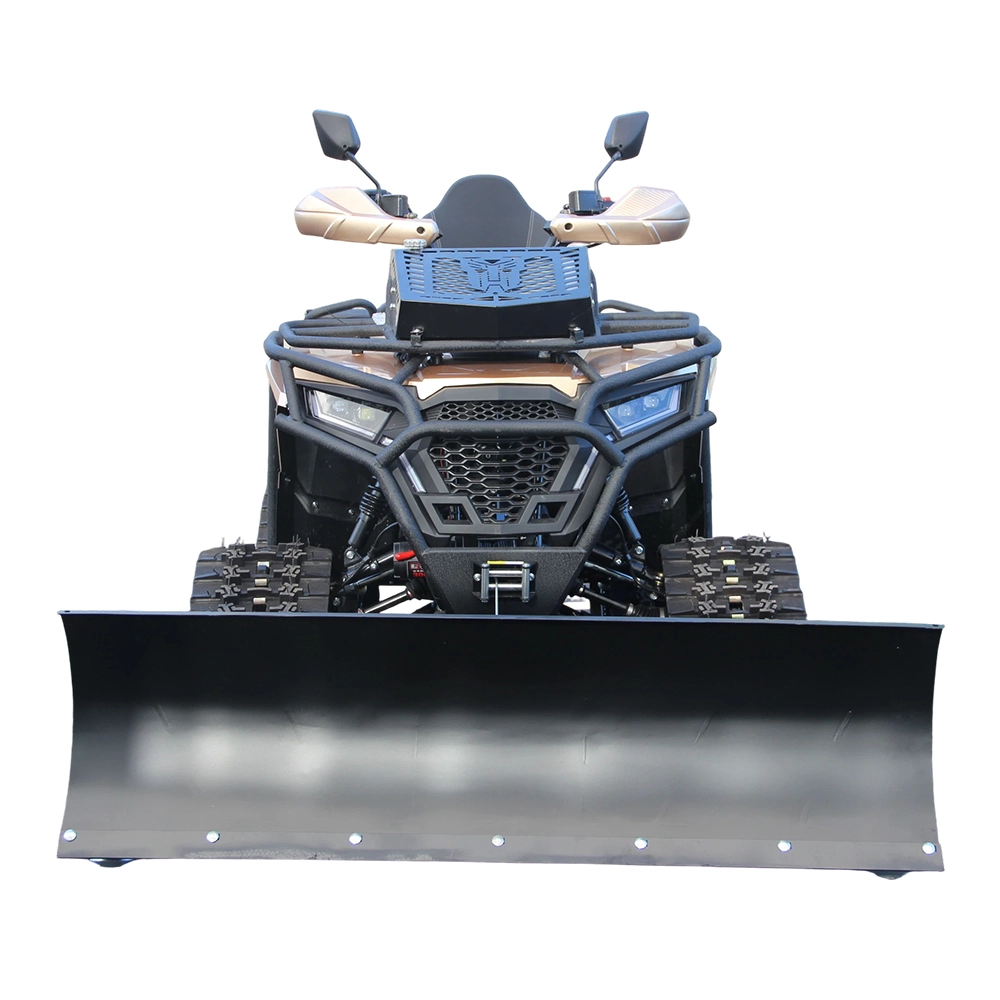

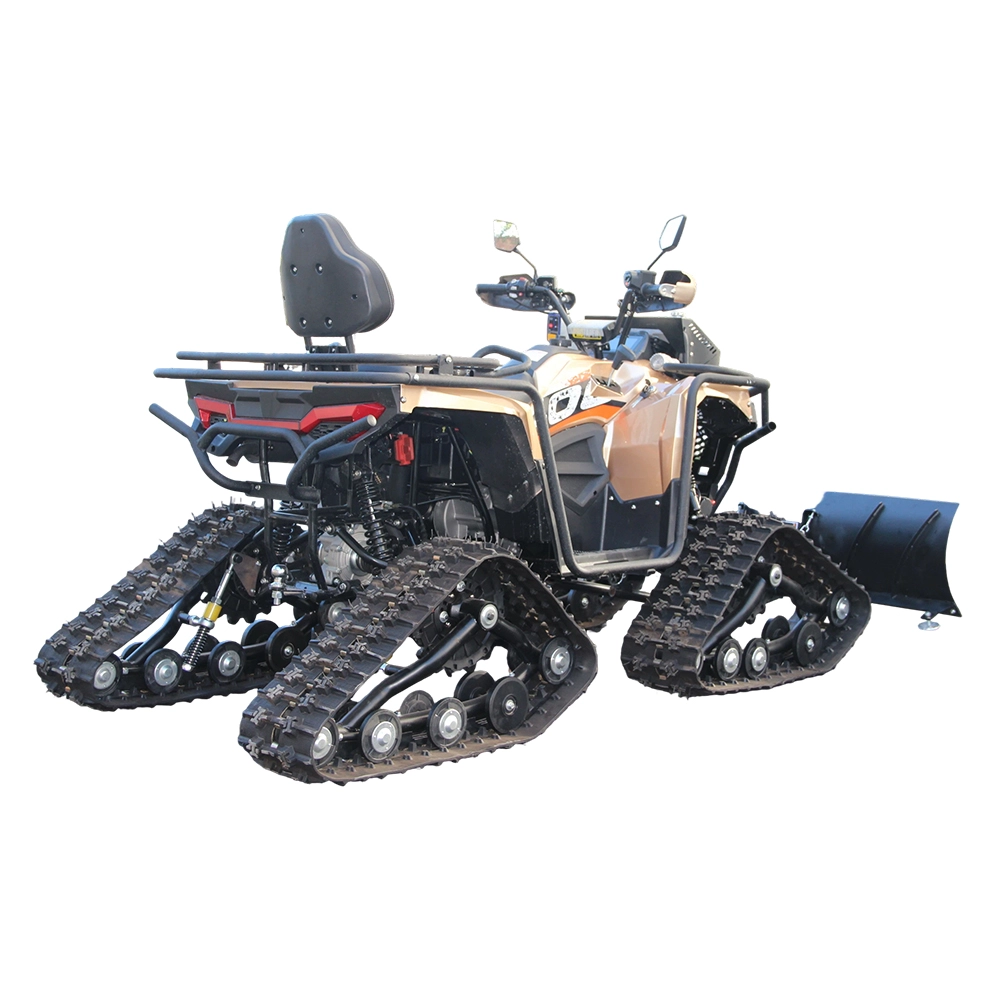

A 400cc class gasoline ATV on a water cooled four stroke engine with EFI, so fuelling stays steady on cold starts without a choke. Electric start, a shaft CVT and an L-H-N-R gear position cover slow hauling and open ground riding.

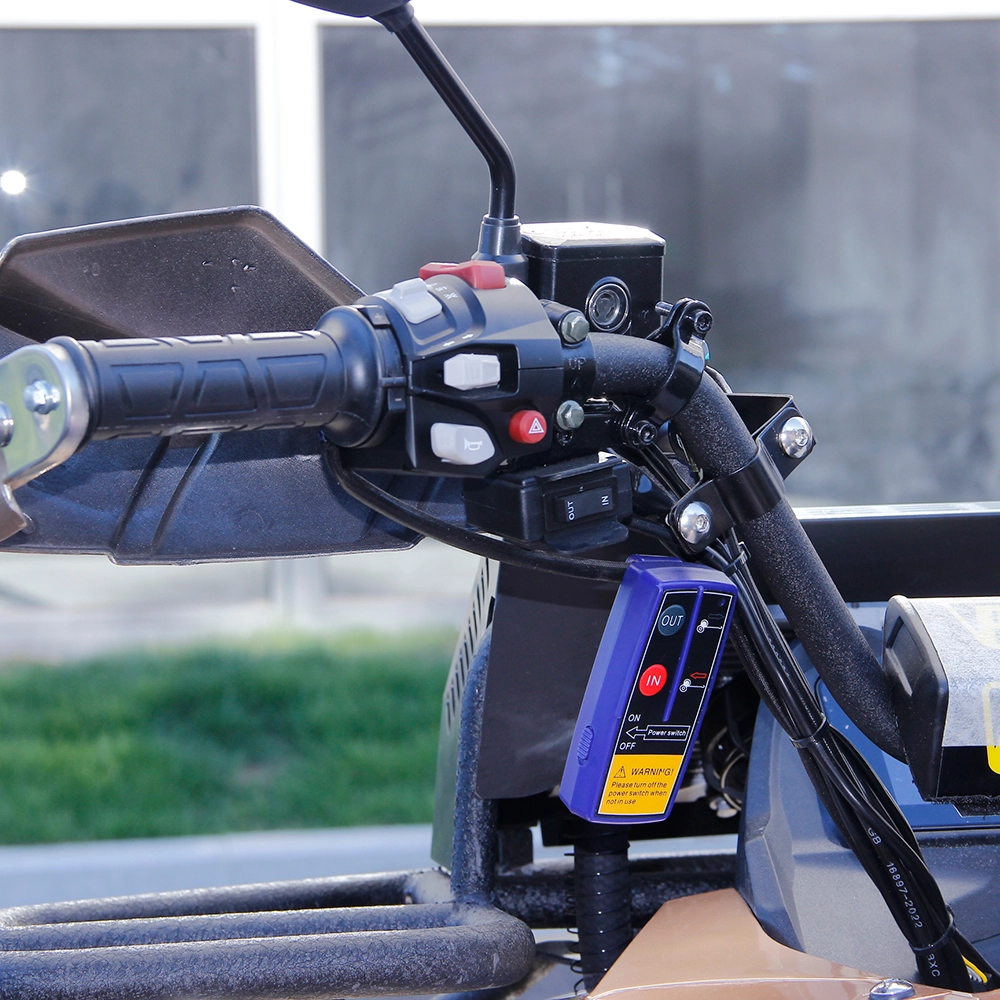

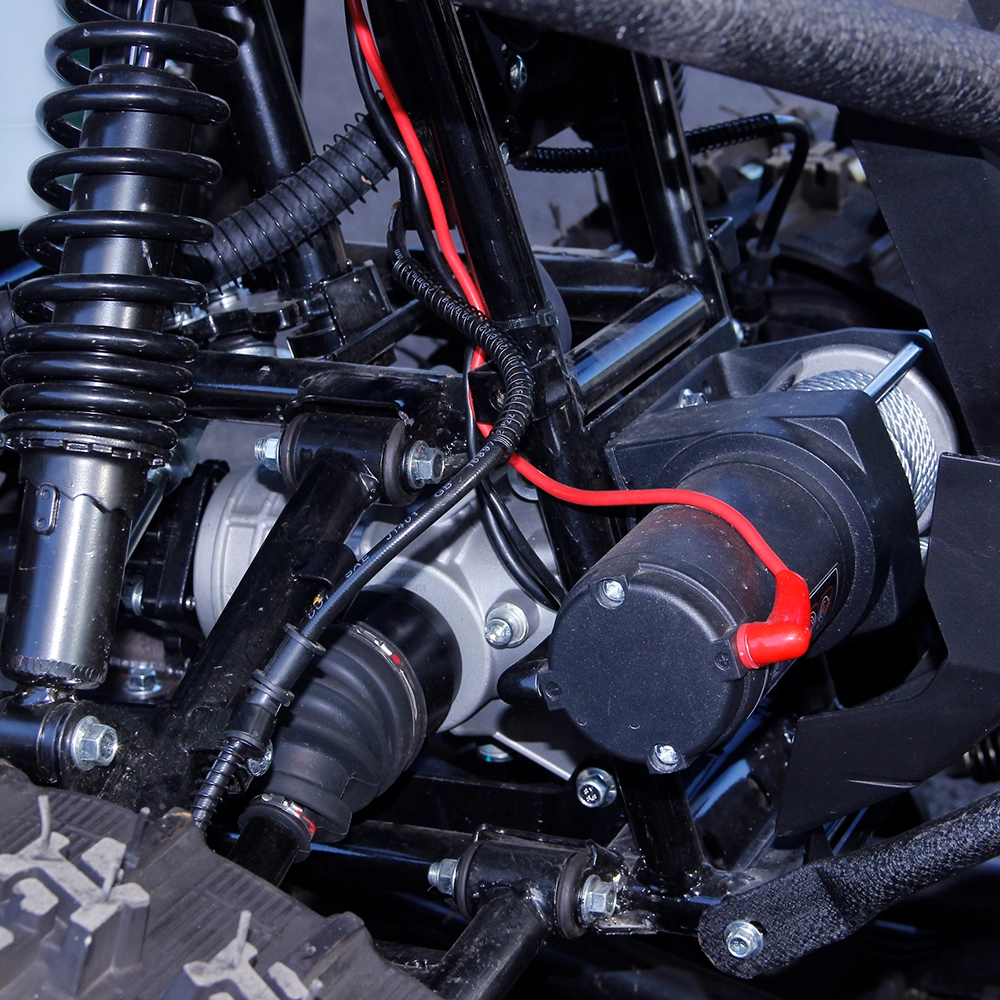

Part time 4WD, a front differential lock and a winch pull the machine out of soft or snow covered ground. Four wheel disc brakes, double A-arm front suspension, 25x8-12 and 25x10-12 alloy wheels, a 12L tank and 190mm clearance reach 75km/h and about 200km at a 280kg load, 36pcs per 40HQ.
Wuyi Mole Motion Apparatus Co., LTD., based in Zhejiang, China and trading since 2016, builds the ATVIMX range for buyers in Eastern Europe, South Asia, Western Europe and the Middle East. Supplied as an exporter with ODM support and bulk purchase terms.
You can click on the shopping cart to learn more about details, availability, and prices.
| ① Dimension | 2080x1100x1160mm |
| ② Wheelbase | 1300mm |
| ③ Seat height | 830mm |
| ④ Ground clerance | 190mm |
| Engine | 400CC Single-cylinder, water-cooled, four-stroke |
| Bore x stroke | 75x65 |
| Compression ratio | 11:01:00 |
| Max power | 17KW/6800rpm |
| Max torque | 28N.m/5500rpm |

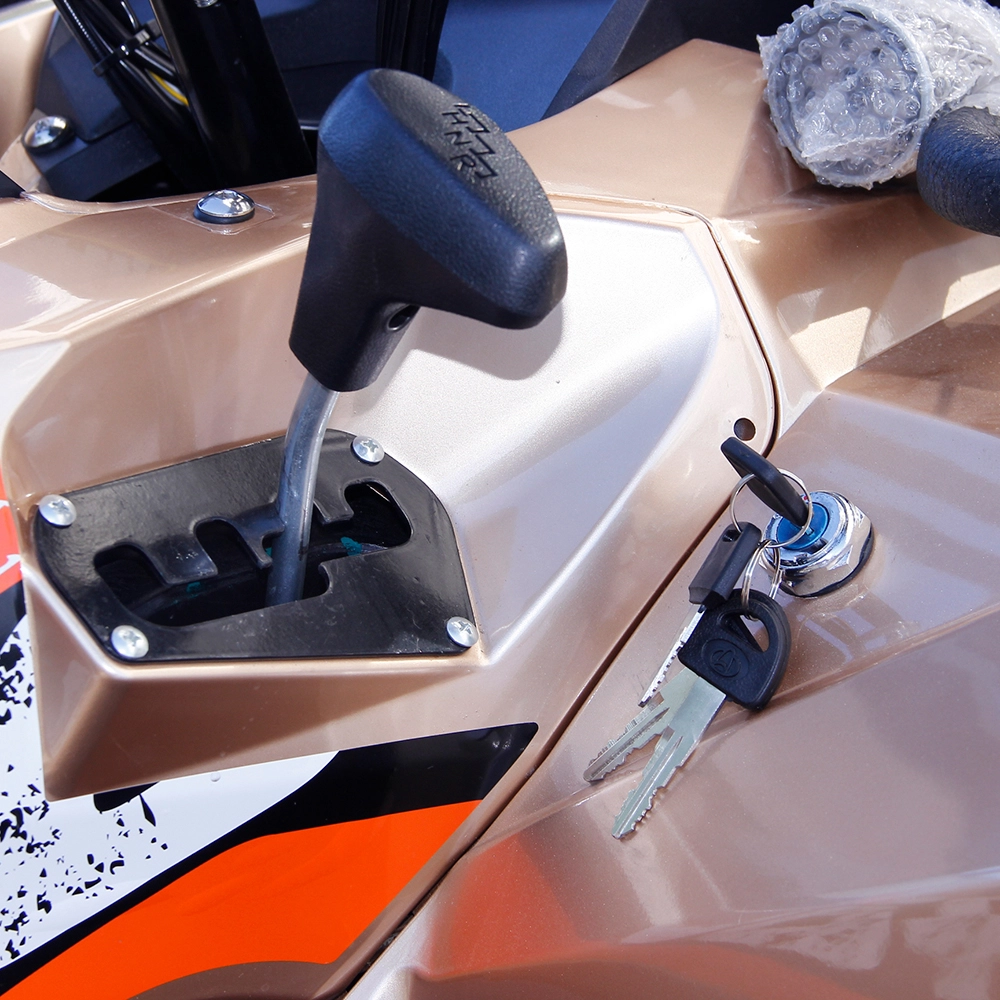

| Gear position | L-H-N-R |

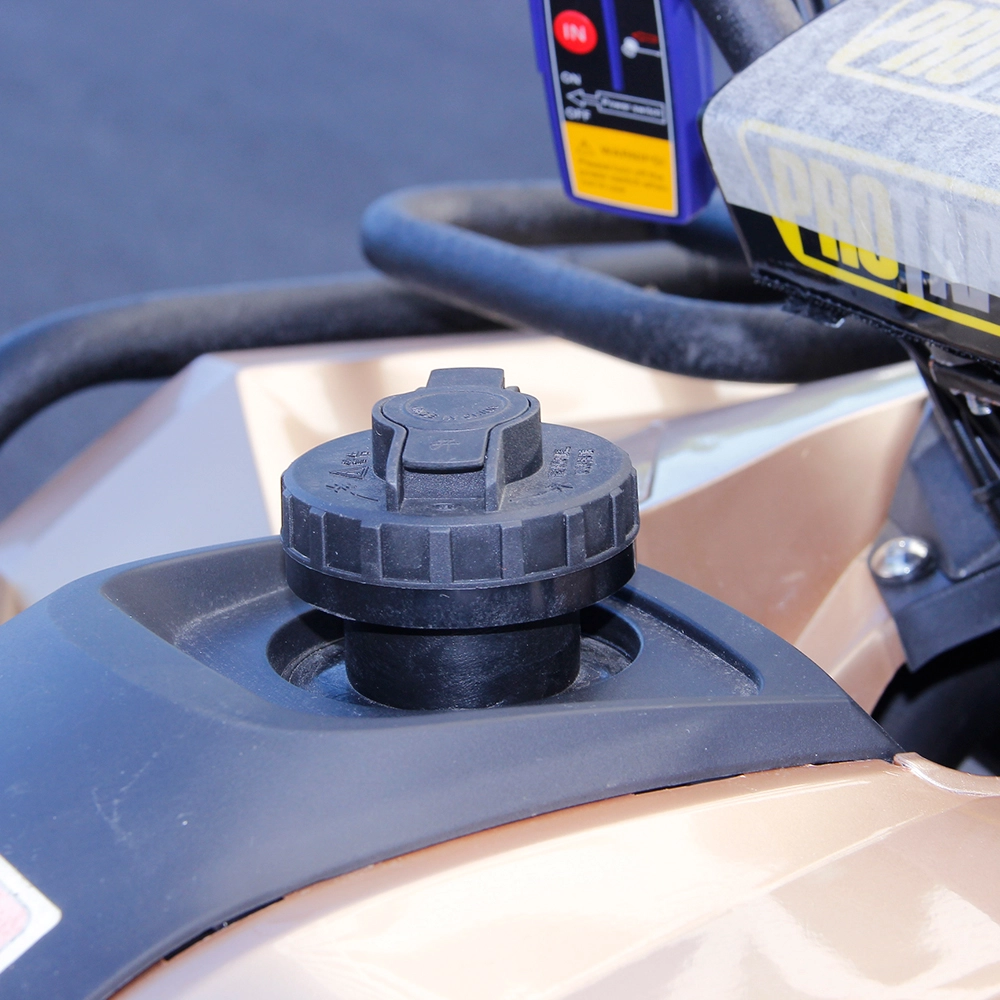

| Fuel capacity | 12L |
| Ignition | EFI |
| Startup type | Electric start |

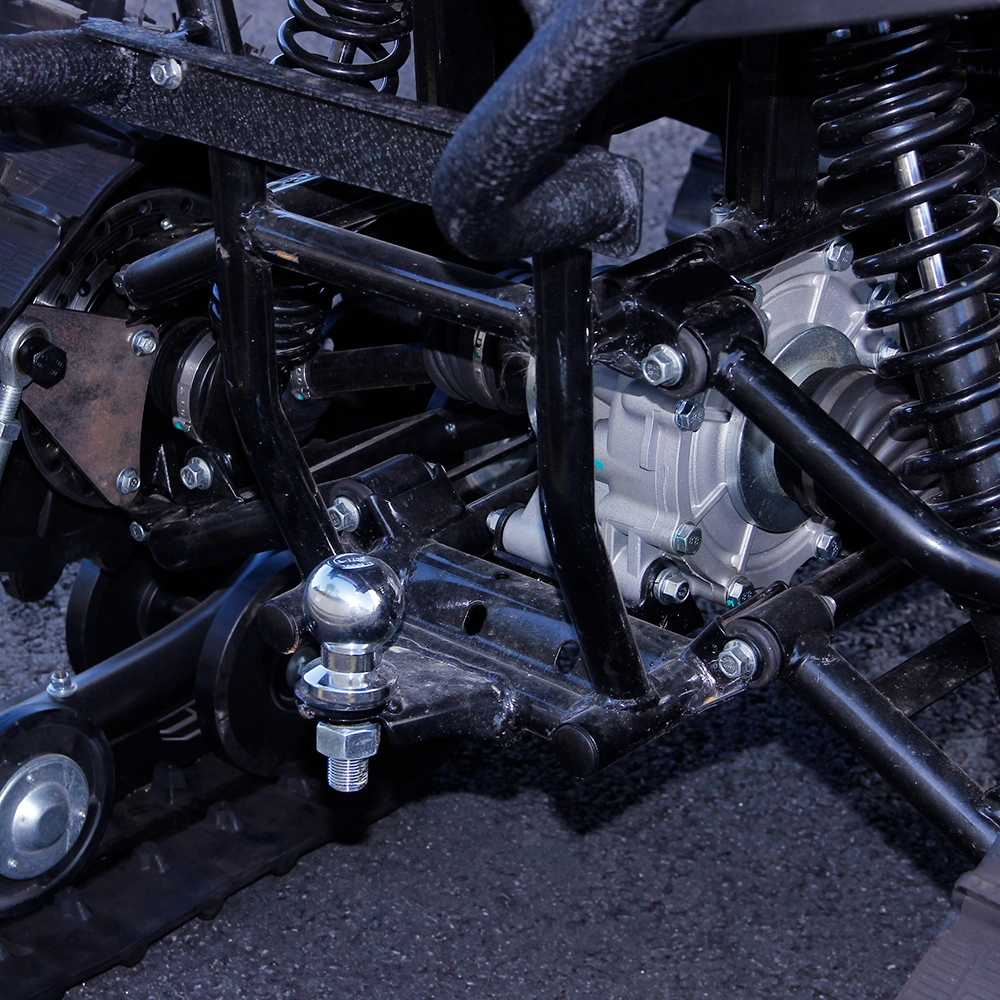

| Suspension | Front: Double A-arm Rear: Independent suspension |
| Braking | Front and rear four-wheel disc brakes |
| Driving mode | Part-time 4WD |
| Transmission | Shaft CVT |
| Tyre | front: 25×8-12 alloy rear: 25×10-12 alloy |
| Gradeability | < 45° |
| Range | About 200km |
| Max. speed | 75km/h |
| Max load capacity | 280kgs |
| Brake system | Front and rear disk |
| Suspension | Spring |

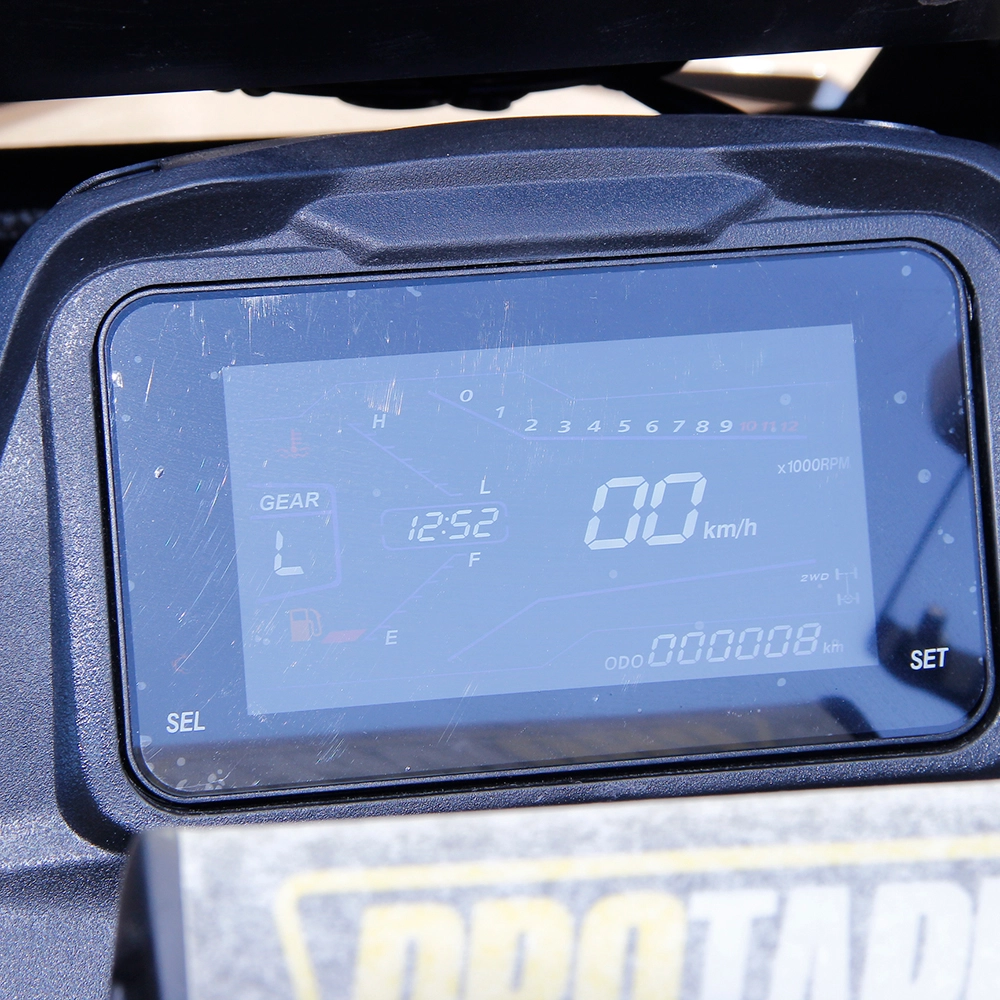

| Specific configuration | bashan 350 ( customer normally mark 400cc) EFI , winch, mudy style. LCD meter, 4WD adjustable, front differential lock, heat grip |
| Weight | 370kgs |
| Carton size | 2004x1134x840mm |
| Color | Black/Orange |
| QTY | 36pcs/40HQ |
Wuyi Mole Motion Apparatus Co.,LTD.(brand: ATVIMX), established in 2016, is a professional off-road vehicle manufacturer integrating R&D, intelligent manufacturing, sales, and global export.Our company is equipped with automated robotic production equipment and has built standardized intelligent production lines coverin......
We offer ATVs, dirt bikes, go-karts and full accessories, covering kids & adult leisure, racing and amusement scenarios.
We provide OEM private labeling and ODM full R&D customization for off-road vehicles. Add your logo to our mature ATV platforms or build exclusive models from scratch. Our team offers full-chain one-stop solutions for your market.
Our intelligent robotic production lines cover stamping, welding, assembly and full safety testing to guarantee consistent quality and on-time delivery.
