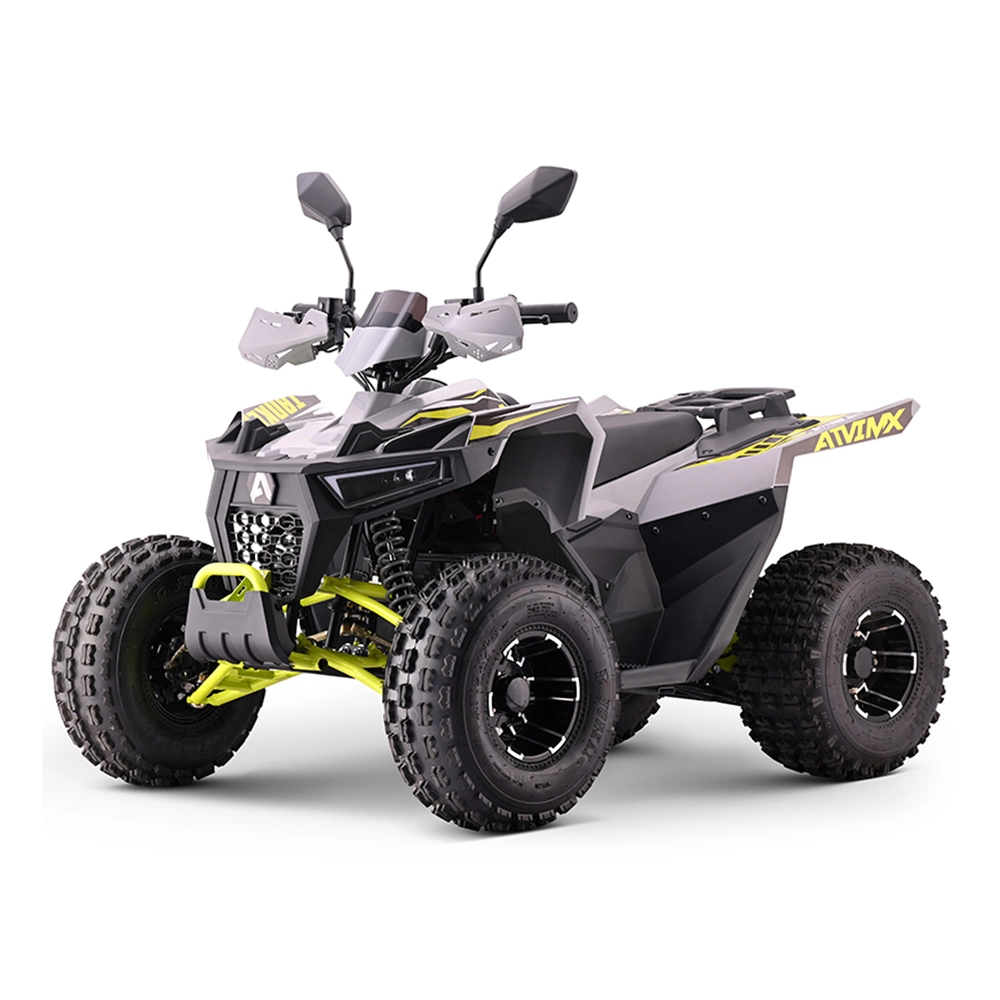

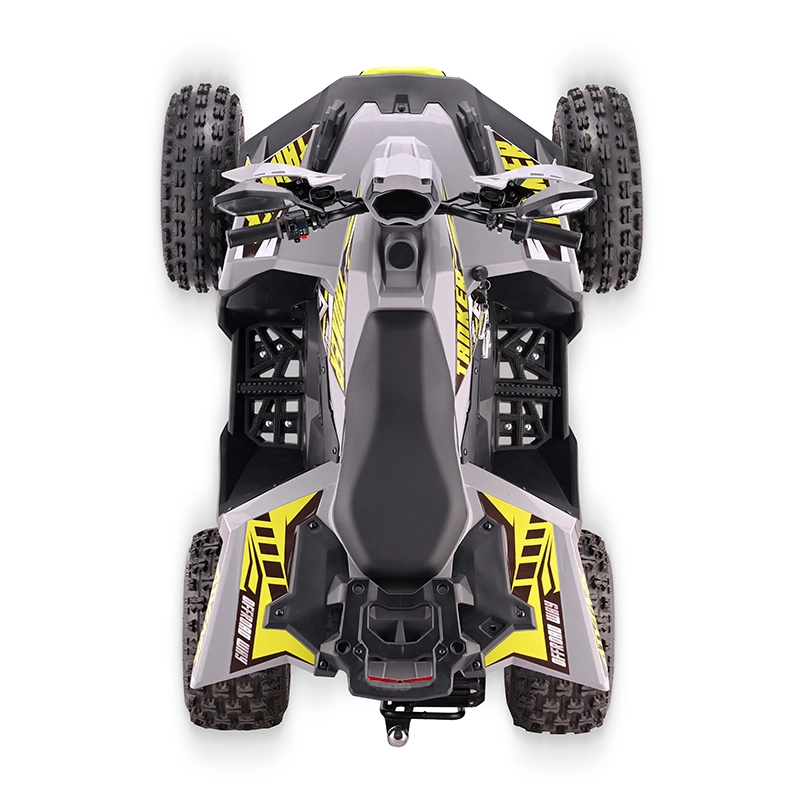

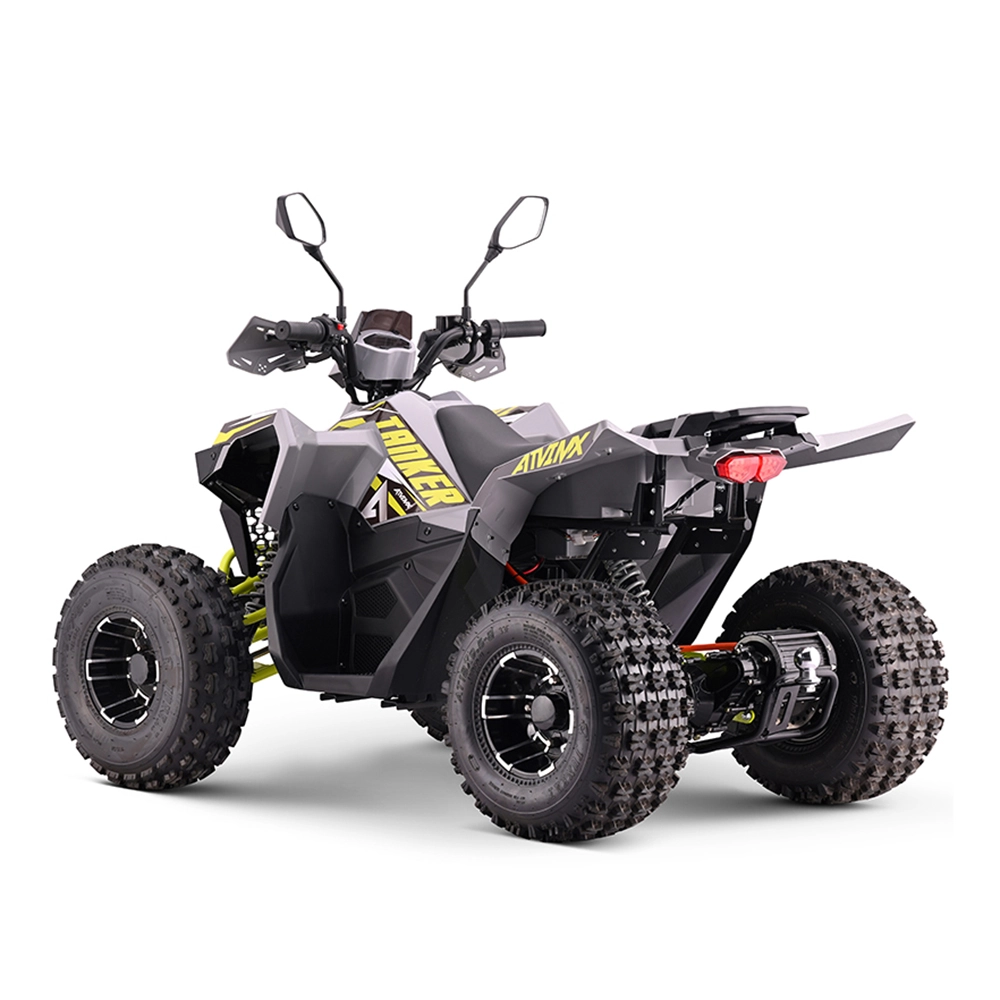

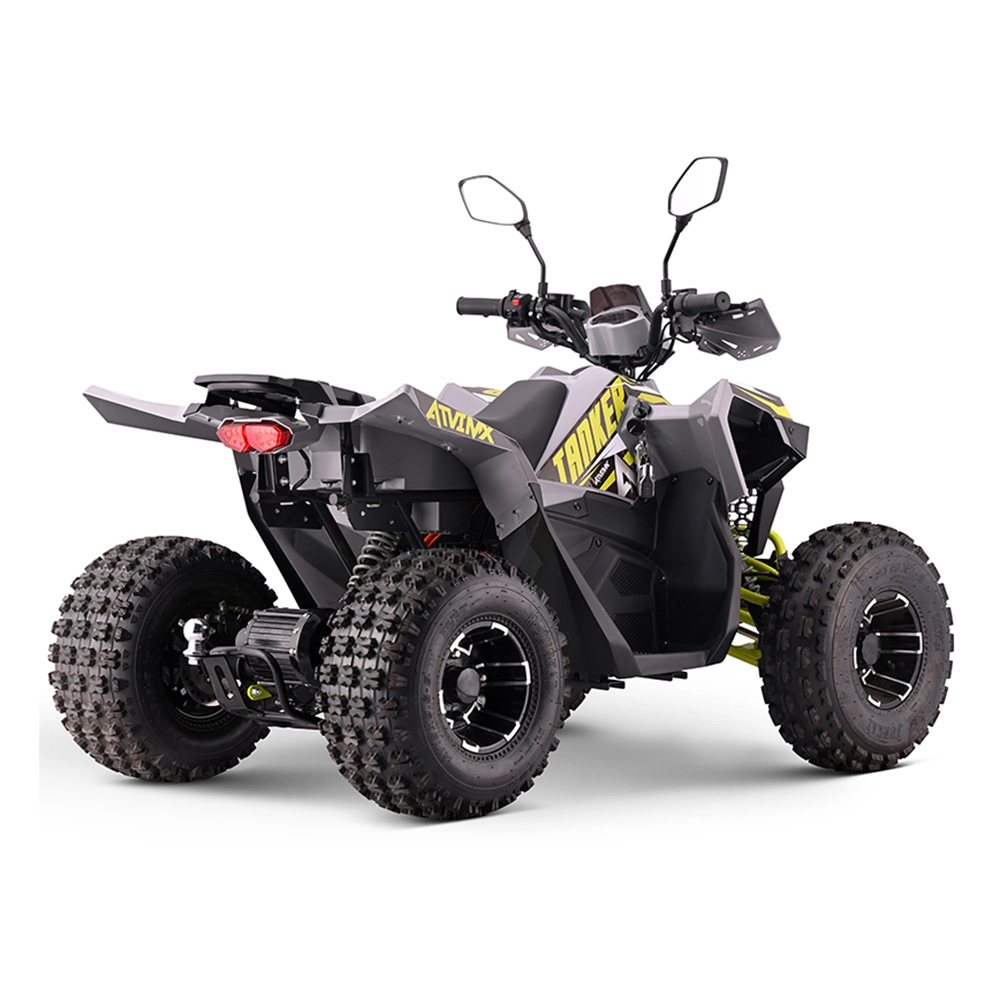

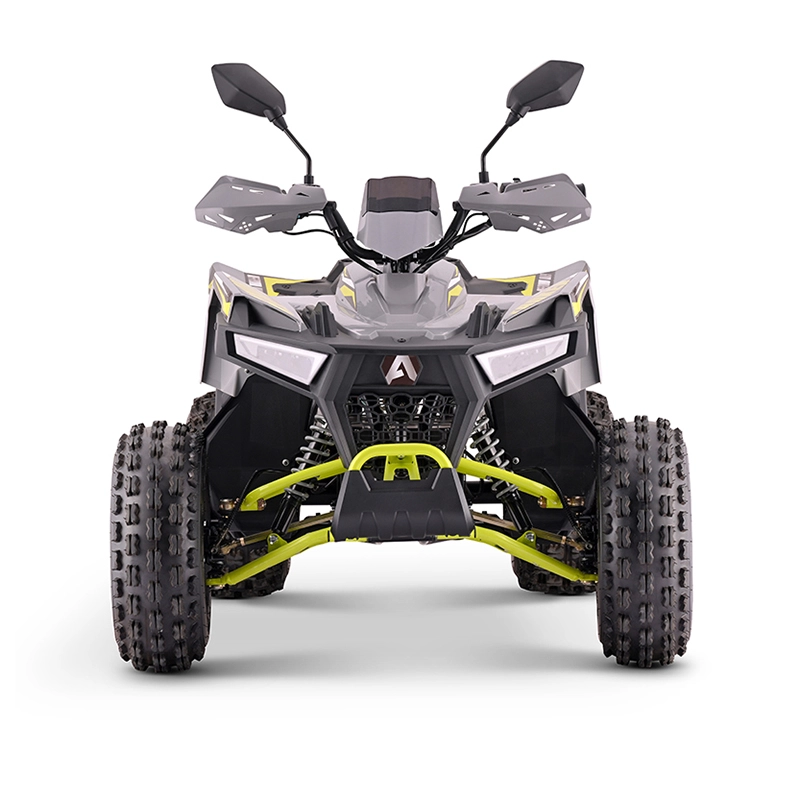

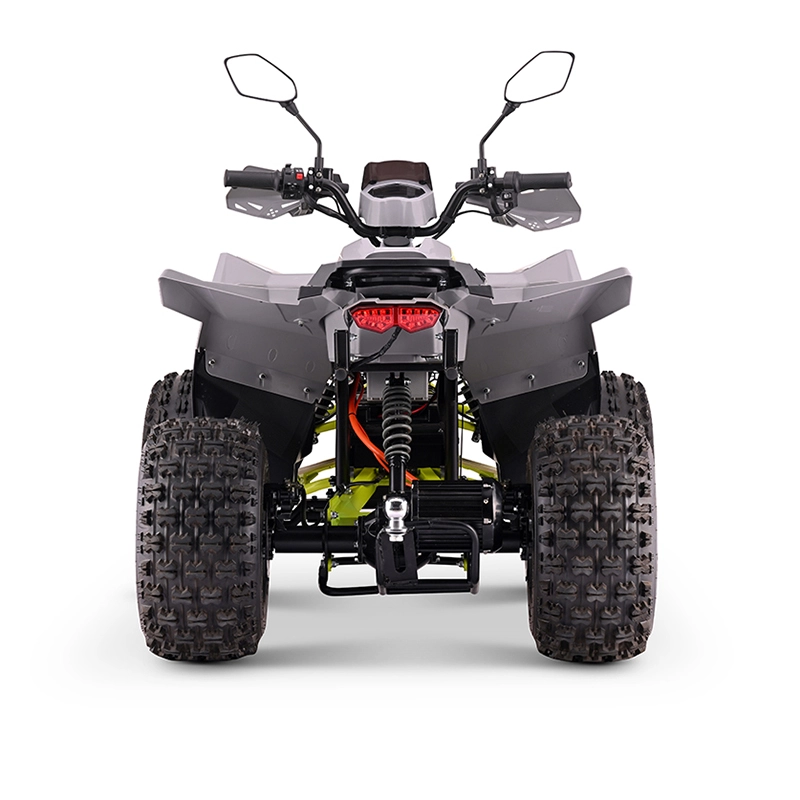

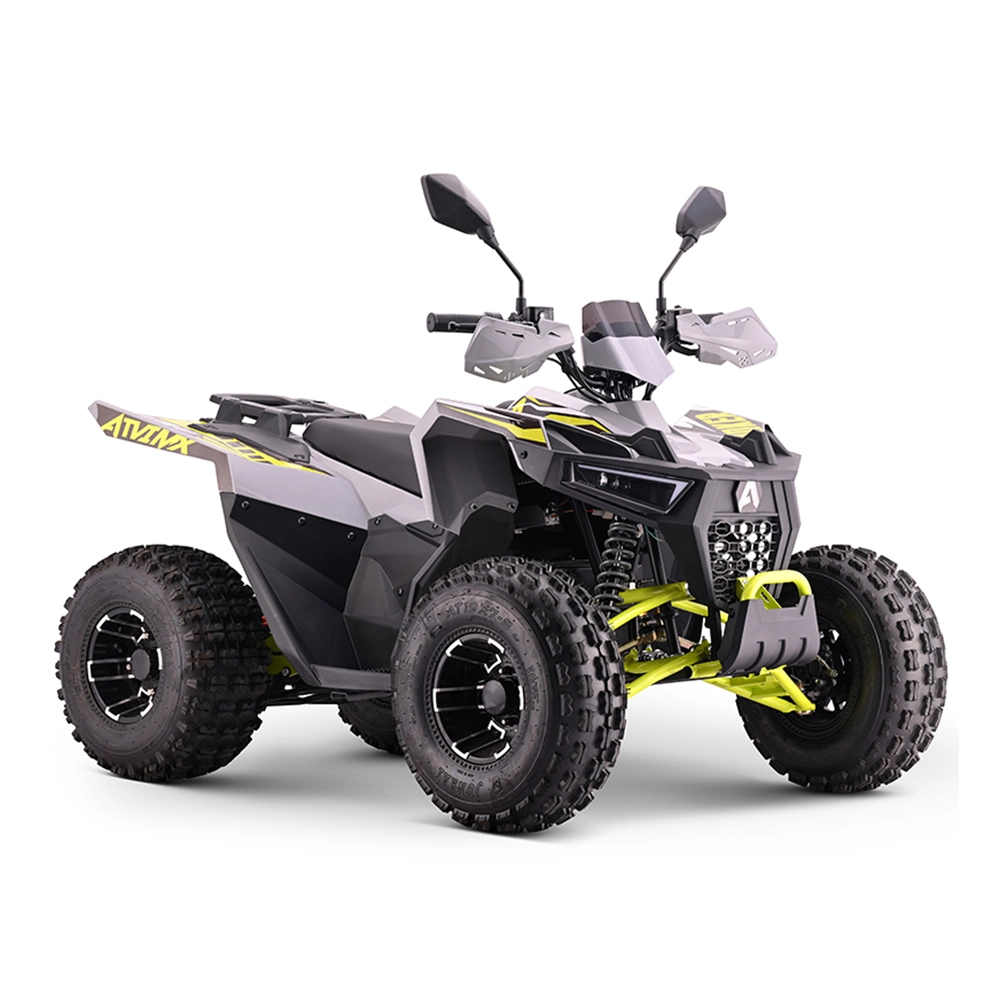

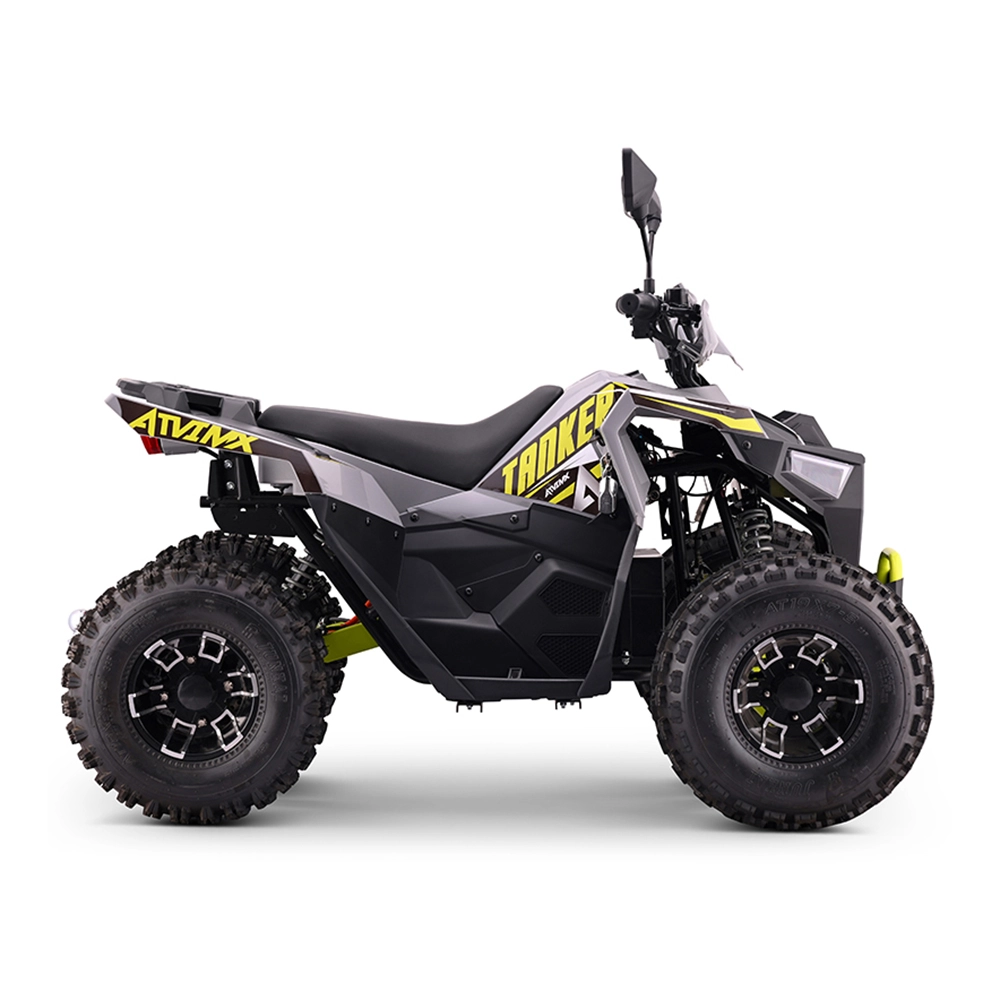

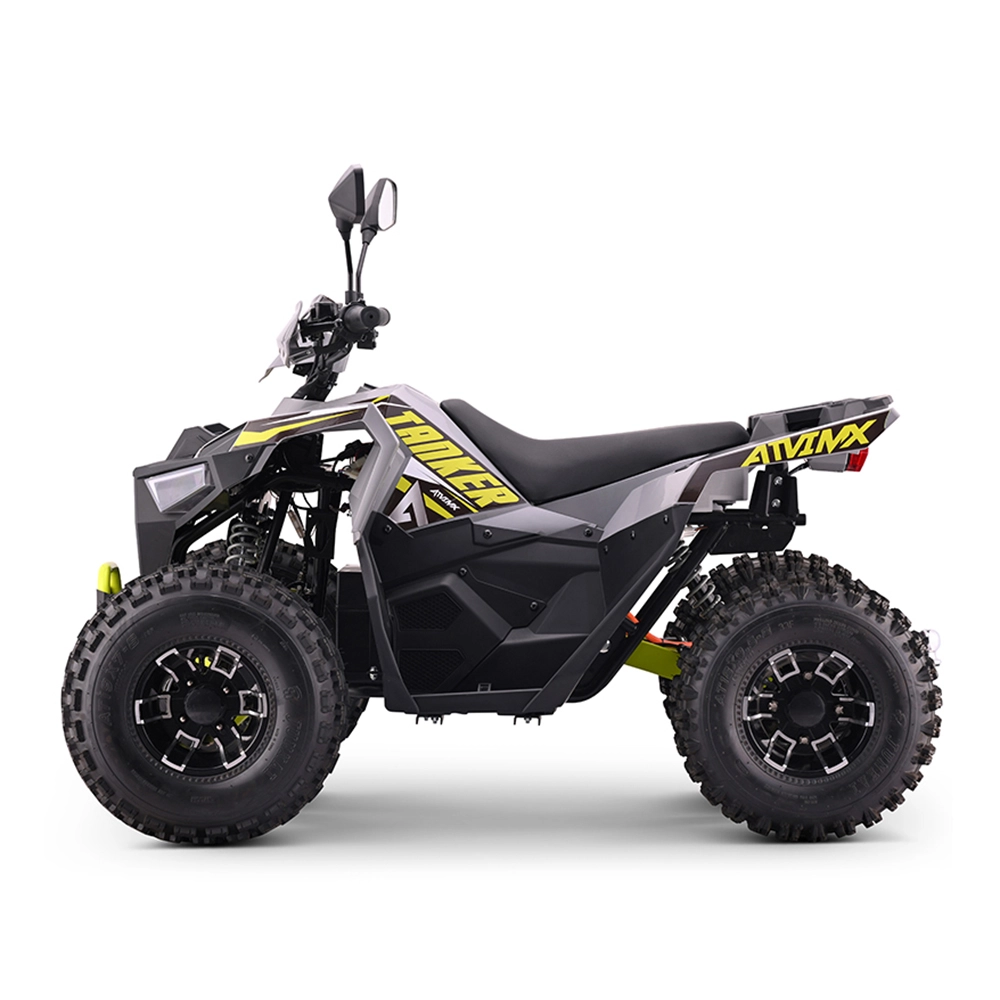

A brushless motor working off a 60V 20Ah lead acid battery gives this utility electric ATV quiet torque for farm checks, estate patrol and trail maintenance. Three forward speeds run 16km/h, 24km/h and 50km/h, and a shaft final drive removes the chain adjustment and lubrication that chain driven machines need.

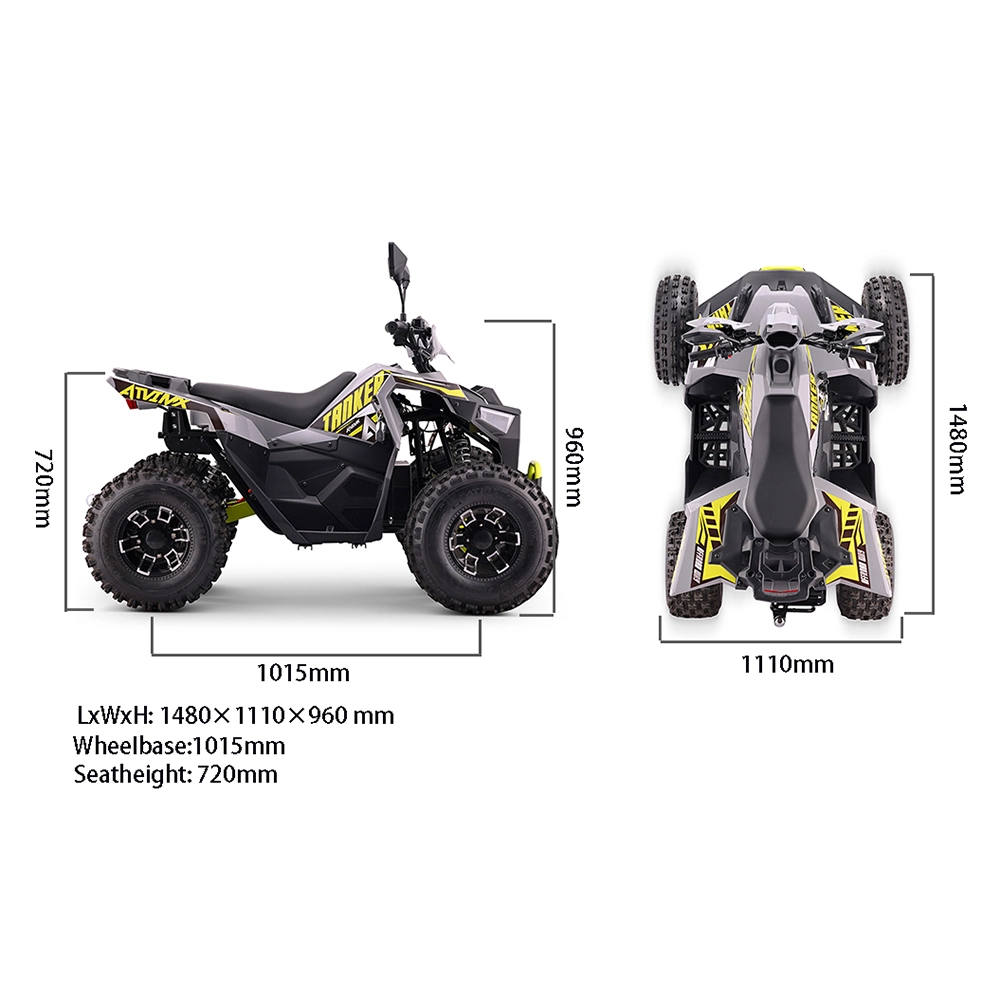

Reverse and a park position sit alongside the three forward speeds, which helps when the machine is manoeuvred onto a trailer or parked on a slope. The chassis measures 1480x1110x960mm over a 1015mm wheelbase with a 720mm seat height and 120mm of ground clearance, enough for rutted tracks and wet ground.
ATVIMX is produced by Wuyi Mole Motion Apparatus Co., LTD. in Zhejiang, China, trading since 2016 and exporting to Eastern Europe, South Asia and the Middle East. Available for procurement programmes with ODM development and factory direct supply.
You can click on the shopping cart to learn more about details, availability, and prices.
| ① Dimension | 1480x1110x960mm |
| ② Wheelbase | 1015±20mm |
| ③ Seat height | 720±15mm |
| ④ Min ground clearance | 120±15mm |
| E-motor | Brushless motor |
| Battery | 60V 20Ah lead acid |
| Speed | H/50km M/24km L/16km (3F speed & R & P) |
| Final drive | Shaft |
| Range per full charge( 60V20AH lead acid battery) | ~30km |
| Wheel & tires | High strength steel rim, front 8" and rear 8" |
| Tire | front 19x7-8; rear 18x9.5-8 |
| Max. speed | 50km/h |
| Max load capacity | 82kgs |
| Brake system | Front and rear hydraulic brake |
| Suspension | Front and rear with damping |
| N.W./G.W. | 134kgs/148kgs |
| Carton size | 139x90.5x63cm |
| QTY | 84pcs/40HQ |
